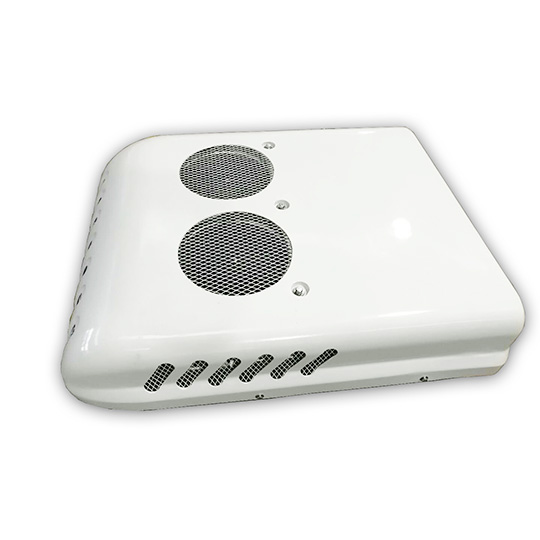

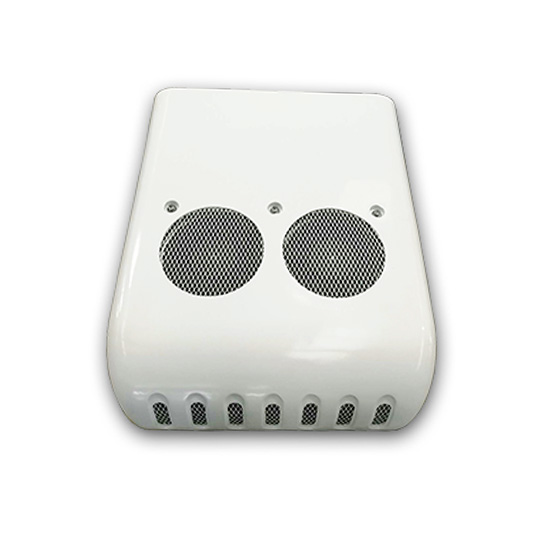

King Clima KK-60 model is direct engine driven 6KW cooling solutions for minibus or vans with 4-4.5m length.
| Model | KK-60 | |
| Cooling Capacity | 6400W/5500Kcal/22000Btu | |
| Power Consumption (24V) | <330W | |
| Installation Type | Rooftop Mounted | |
| Driven Type | Direct Engine Driven | |
| Max Operating Temp. (℃) | 50℃ | |

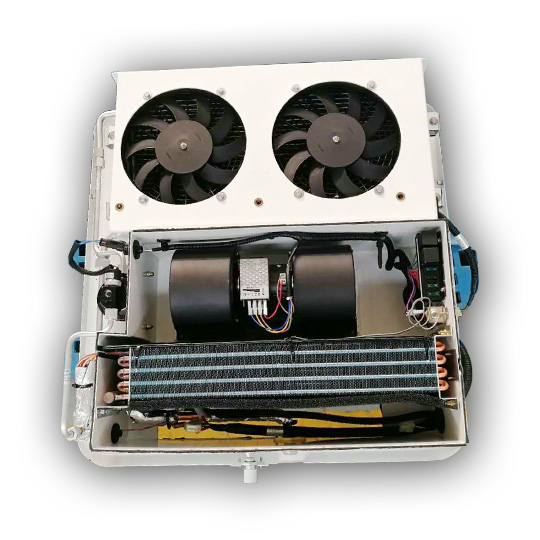

| Evaporator Type | Hydrophilic aluminum foil with internal ridge copper tube | |
| Evaporator Air Flow Volume (m³/h) | 600m³/h | |
| Evaporator Fan Motor | 3-speed Centrifugal Type | |
| Evaporator No. Or Fan Motor | 2pc | |
| Condenser Type | Aluminum Foil with Internal Ridge Copper Tube | |
| Condenser Air Flow Volume (m³/h) | 1800m³/h | |
| Condenser Fan Motor | Axial Type | |
| Condenser No. Or Fan Motor | 2pc | |
| CompressorCompressor Brand | Sanden China Compressor | |
| Compressor Model | SD5H14 | |
| Compressor Displacement | 138cc/r | |
| Compressor Compressor Oil Type | PAG100 | |
| Compressor Weight(KG) | 5KG | |
| Evaporator Blower | 3-speed centrifugal type | |
| Condenser Fan | Axial flow | |
| Compressor | Valeo TM21, 215 cc/r | |
| Refrigerant | R134a | |
| Length/Width/Height (mm) | 956*761*190 | |
| Weight (KG) | 30 | |
| Application | 4-4.5m Minibus or Vans | |
