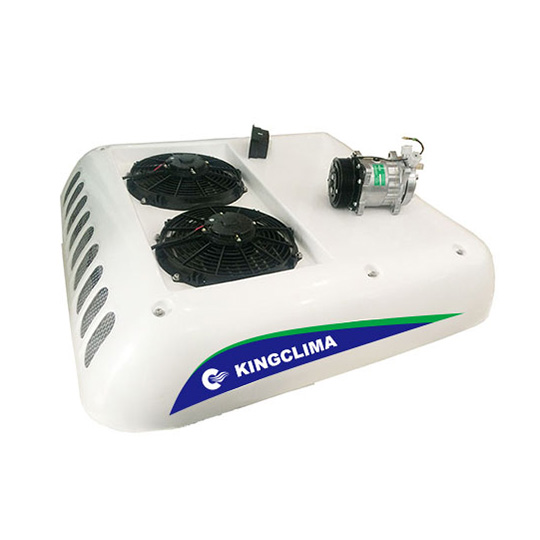

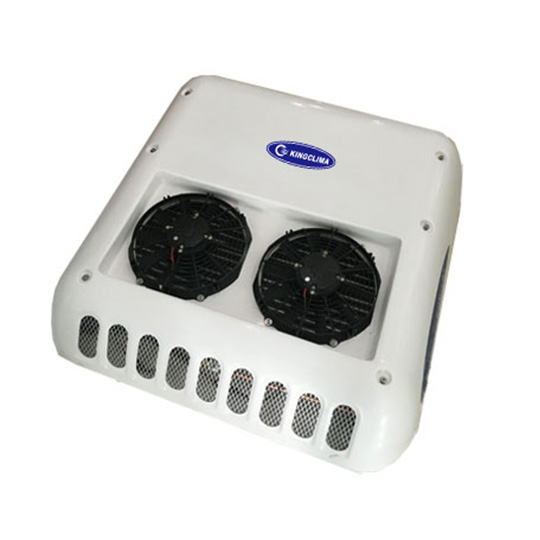

King Clima KK-80 is solutions for minibus or vans cooling systems. Integrated rooftop mounted, 8KW cooling capacity, vehicle powered, apply for the 6-6.5 meter minibus or caravans.
| Model | KK-80 | ||
| Cooling Capacity | 8KW/27297BTU | ||
| Voltage | DC12V/24V | ||
| Installation Type | Integrated Rooftop Mounted | ||
| Driven Type | Vehicle Engine Driven | ||
| Condenser Type | Copper Pipe and Aluminum Foil Fin | ||
| Condenser Fan Qty | 2 | ||
| Condenser Air Flow Volume (m³/h) | 3800m³/h | ||
| Evaporator Type | Copper Pipe and Aluminum Foil Fin | ||
| Evaporator Fan Qty | 1 | ||
| Evaporator Air Flow Volume (m³/h) | 1000m³/h | ||
| Evaporator Blower | Double axle and centrifugal flow | ||
| Condenser Fan | Axial flow | ||
| Compressor | 7H15, 155cc/r | ||
| Refrigerant | R134a | ||
| Dimensions (mm) | 1010*975*180 | ||
| Application vehicle types | 6-6.5m minibus or caravans |
