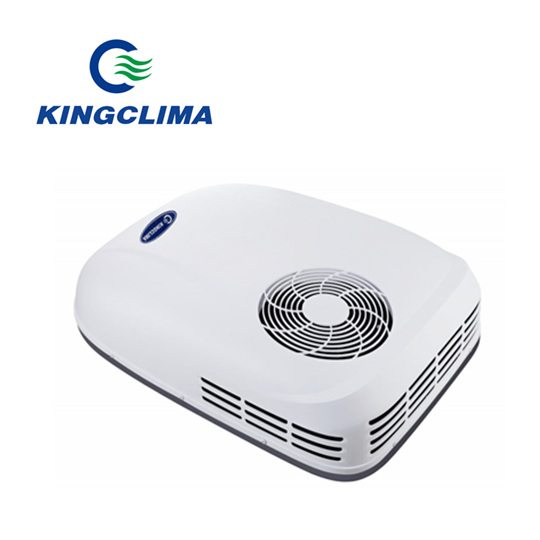

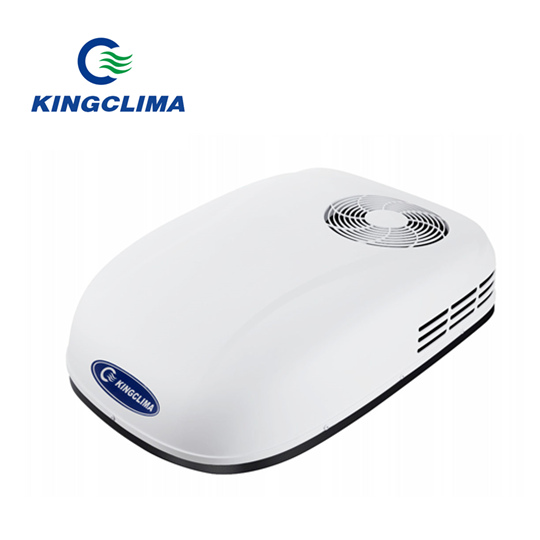

Ucooler-3300Pro Low Profile RV Air Conditioner save you space inside by fitting on to your roof. And it has sleek shaping and styling further reduce drag and wind resistance for a smoother ride.
Model : Ucooler-3300Pro
Electrical Rating : 220V AC/50Hz/1Ph
Cooling capacity(W) : 12000BTU (3300W)
Rated Heating Capacity (HP) : 12500BTU (3500W)
Noise Level (L/M/H), indoor : 46/49/52 dB(A)
Noise Level (L/M/H), outdoor : 49/52/55 dB(A)
Share With:
Product Description
Introduction
Ucooler-3300Pro Low Profile RV Air Conditioner save you space inside by fitting on to your roof. And it has sleek shaping and styling further reduce drag and wind resistance for a smoother ride. The Ucooler-3300Pro has three types indoor control panel to choose , which provides more flexible ways to match your requirements.

Features
Features of Ucooler-3300Pro Low Profile RV Air Conditioner :

● low-profile & modish design, super quiet.
● low vibration & powerful cooling/heating capacity.
● More comfortable, low consumed power, easy and smart control.
● PP plastic injection,High strength metal.
● Passing vibration test at 1.6G
● Inside and outside double fan closed operation, more stable, lower noise.
● Remote Controller and Wifi (Mobile Phone App) control, multi control of A/C and the separate Stove.

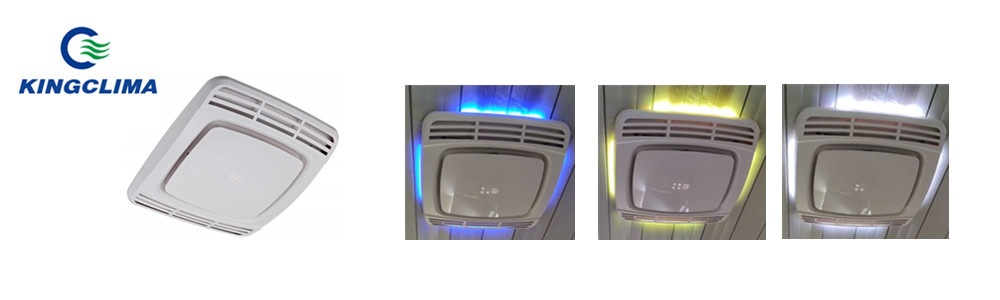

● More humanized functions like a household air conditioners, Cooling, Dehumidification, Heat Pump, Fan, Automatic, Timer On/off,  Ceiling Atmosphere Lamp (Multicolor LED strip) optional, etc.
● The Ucooler-3300Pro has three types indoor control panel to choose , which provides more flexible ways to match your requirements.

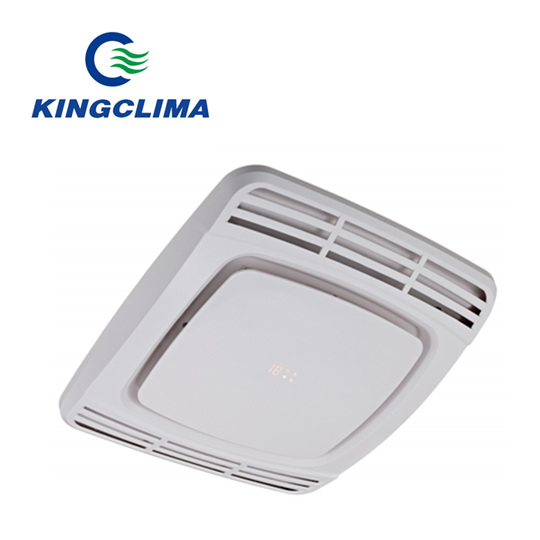

Indoor Control Panel-1
LED Control pannel,Remote Controller and Wifi (Mobile Phone App) control.

UCooler-3300Pro Low Profile RV Air Conditioner

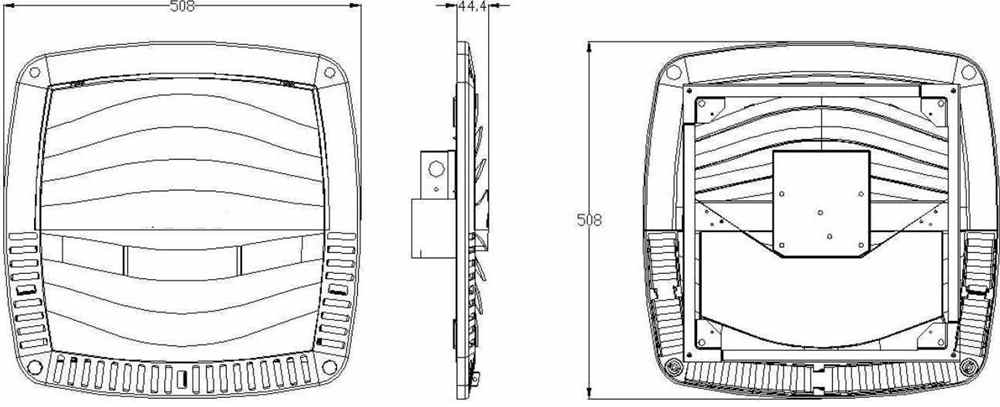

Indoor Control Panel-2
Electronic Panel, AIR DISTRIBUTION BOX(Duct type、QUICK COOL function)


UCooler-3300Pro Low Profile RV Air Conditioner


    Basic specification :

● Wall-mounted electronic control;
● It can be controlled by full system), heat pump, electric heating, gas stove;
● It can be equipped with or without air duct
● Quick cooling function: When you first enter the car, you can open the straight air outlets on three sides to get air-conditioning immediately;
● The filter is easy to remove and wash;
● The streamlined shape design can be coordinated with different interior ceiling designs.
UCooler-3300Pro Low Profile RV Air Conditioner

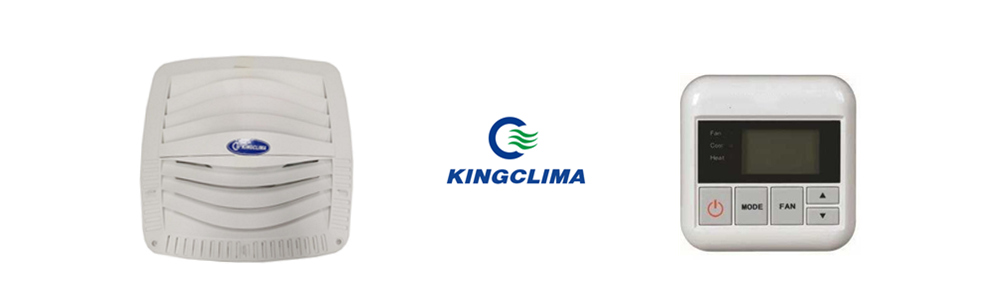

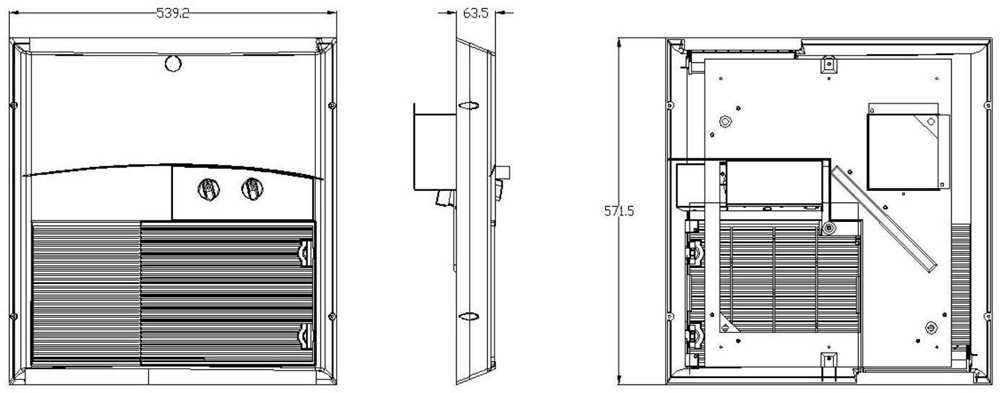

Indoor Control Panel-3
Mechanical panel, AIR DISTRIBUTION BOX(Non-Duct type)

UCooler-3300Pro Low Profile RV Air Conditioner


    Basic Information :

● Three levels of ventilation, three levels of cooling, and one level of heating;
● Temperature controllable (except heating);
● Air flow at both ends, uniform air supply; adjustable wind direction;
● The filter is easy to remove and wash;
● Color: porcelain white






Technical Data
Model Ucooler-3300 Pro
Cooling capacity(W) 12000BTU (3300W)
Rated heating capacity (HP)               12500BTU (3500W)
Electrical rating 220V AC/50Hz/1Ph
Power consumption (C/H)                 1300W / 1060W
Current (C/H) 5.9A / 4.9A
EER/COP 2.54/3.30
Compressor locked rotor current       28A
Air volume (high speed) 480 m3/h
Noise Level (L/M/H), indoor              46/49/52 dB(A)
Noise Level (L/M/H), outdoor           49/52/55 dB(A)
Refrigerant(R410a)(gr.) R410a (740g)
Net Dimensions (Rooftop A/C)           W736 x H253 x L1056 (mm)
Net Dimensions (Indoor Panel)          W540 x D72x L490 (mm)
Ceiling opening dimensions              400x400mm, or 362*362mm optional
Weight(net/gross)(kgs) 42/45
