KK-100 model is perfect van ac unit, vehicle powered for different vans or minibus, 10KW cooling systems, and rooftop mounted types.

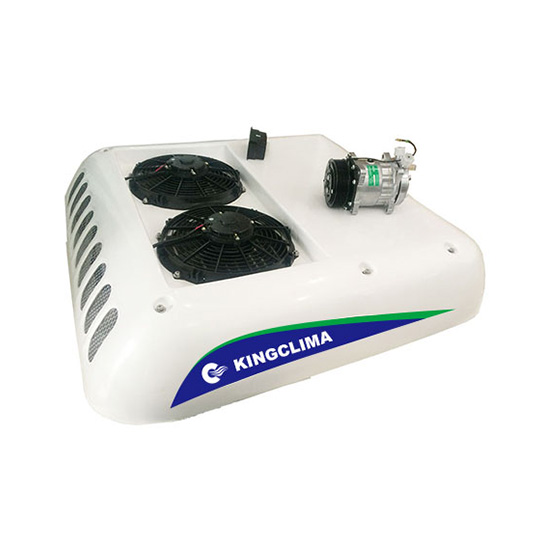

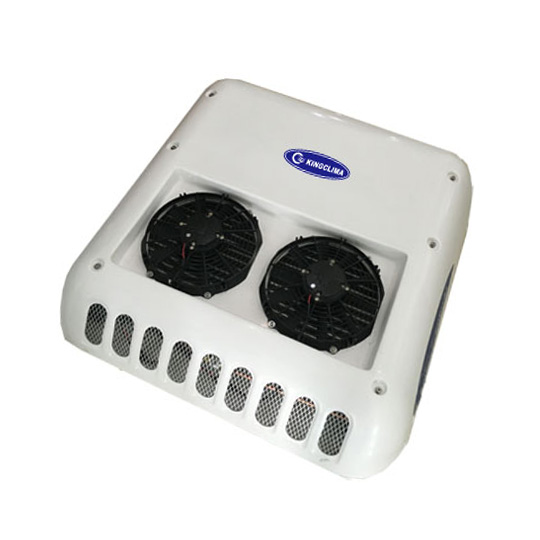

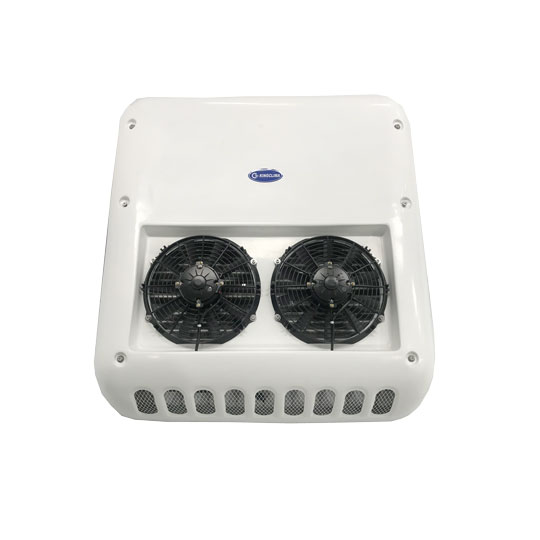

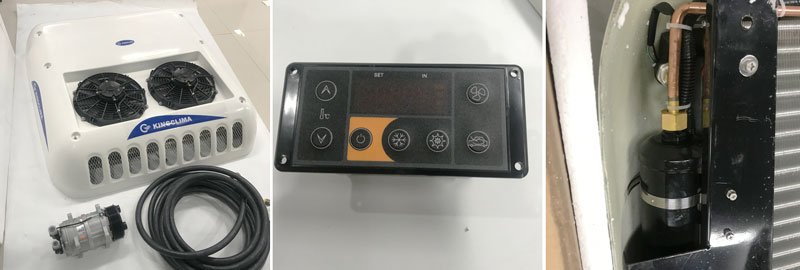

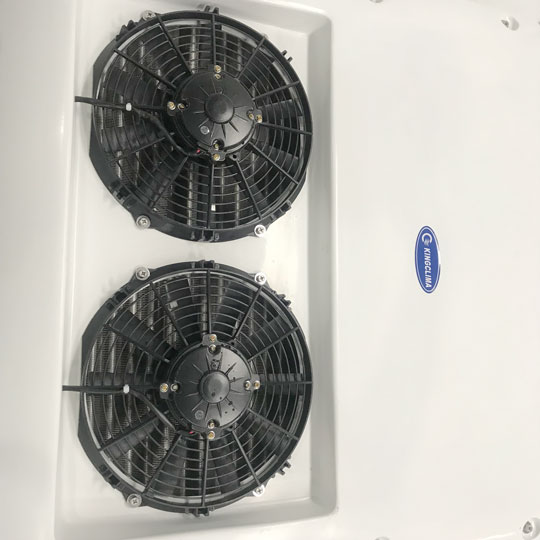

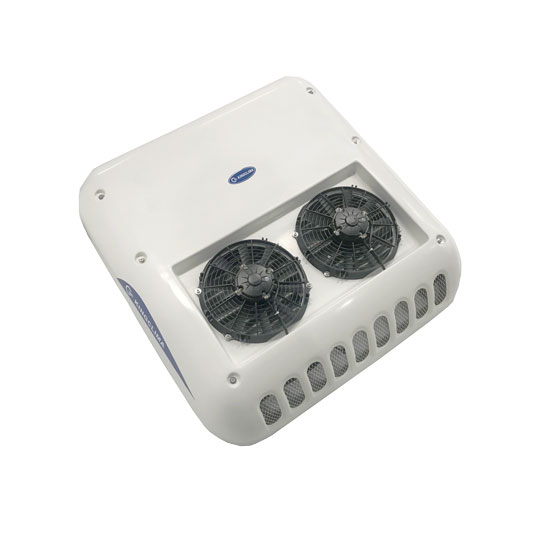

Photo: KK-100 van air conditioners kits 10KW cooling capacity
| Model | KK-100 | ||
| Cooling Capacity | 10KW/34121 | ||
| Voltage | DC12V/24V | ||
| Installation Type | Integrated Rooftop Mounted | ||
| Driven Type | Vehicle Engine Driven | ||
| CoCondenser Type | Copper Pipe and Aluminum Foil Fin | ||
| Condenser Fan Qty | 2 | ||
| Condenser Air Flow Volume (m³/h) | 3800m³/h | ||
| Evaporator Type | Copper Pipe and Aluminum Foil Fin | ||
| Evaporator Fan Qty | 2 | ||
| Evaporator Air Flow Volume (m³/h) | 2000m³/h | ||
| Evaporator Blower | Double axle and centrifugal flow | ||
| Condenser Fan | Axial flow | ||
| Compressor | HL22, 212cc/r | ||
| Refrigerant | R134a | ||
| Dimensions (mm) | 1010*975*180 | ||
| Application vehicle types | 6-7.2m minibus or caravans |
