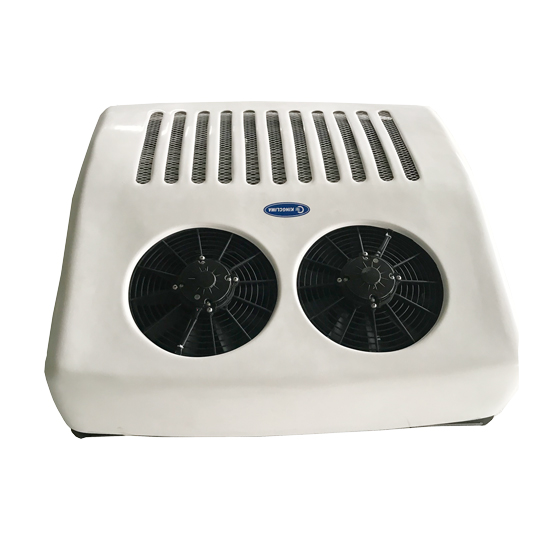

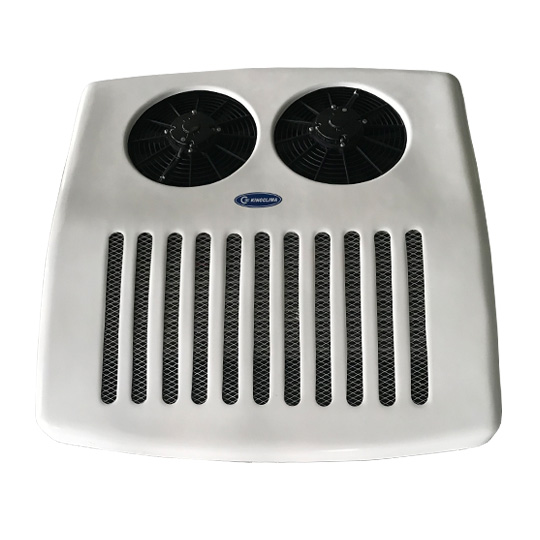

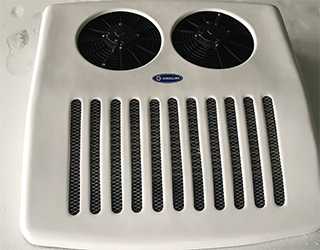

E-Clima6000 model is 12V air conditioner for van (or 24V), with 6000W cooling capacity and rooftop mounted, make the cooling best!

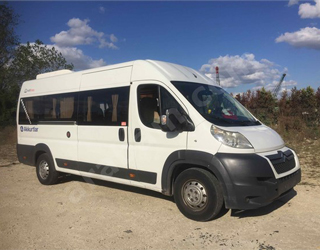

It is used for 6 meter length of minibus or vans. Also can be used for the truck cabins when the ambient temperature is too high (60℃), E-Clima6000 is the best choice.
For the E-Clima6000, we have two types：DC powered or direct engine driven, so customers can choose according to demands.
.jpg)

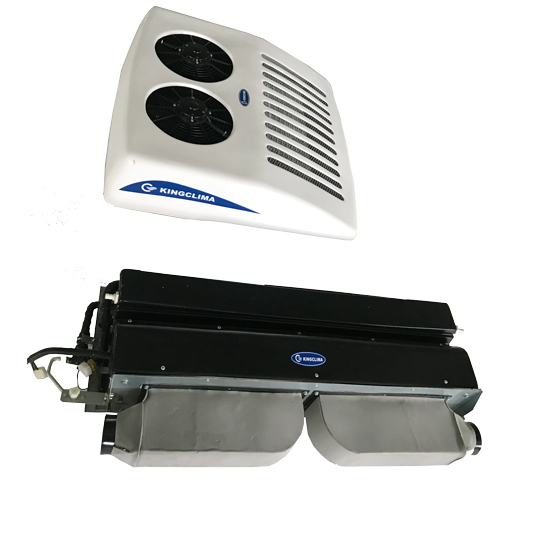

Photo: E-Clima6000 air conditioners whole kits
| Model | Eclima-6000 | |
| Max. Cooling Capacity | 6000W | |
| Consumed Power | 1500W | |
| Driven Mode | Battery Driven Unit | |
| Installing Type | Rooftop-Split Mounted | |
| Compressor Voltage | DC12V/24V/48V/72V/110V、144V、264V、288V、336V、360V、380V、540V | |
| Current Rating (DC12V) | ≤125A | |
| Current Rating (DC24V) | ≤ 63A | |
| Evaporator Blower Air Volume | 650m3/h | |
| Condenser Fan Air Volume | 1700m3/h | |
| Compressor | 18ml/r | |
| Evaporator Size (mm) | 1580*385*180 (with air ducting) | |
| Condenser Size (mm) | 920*928*250 | |
| Refrigerant | R134a, 2.0~2.2Kg | |
| Evaporator Weight (kg) | 18 | |
| Condenser Weight (kg) | 47 | |
| In-vehicle temperature range | 15℃～+35℃ | |
| Safety assurance device | High and low voltage switch safety protection | |
| Temperature adjustment | Electronic digital display | |
| Application | Minibus/van less 6 meter | |
